Description
- Hign-concerned Chemical: None
- RAID Supported: No
- Processor compatibility: 13th Intel Core i7,Intel Core i7
- Ports: M.2
- Usage Scenario: Gaming,Audio & Video,Office,DESIGN,Video Production,HPC

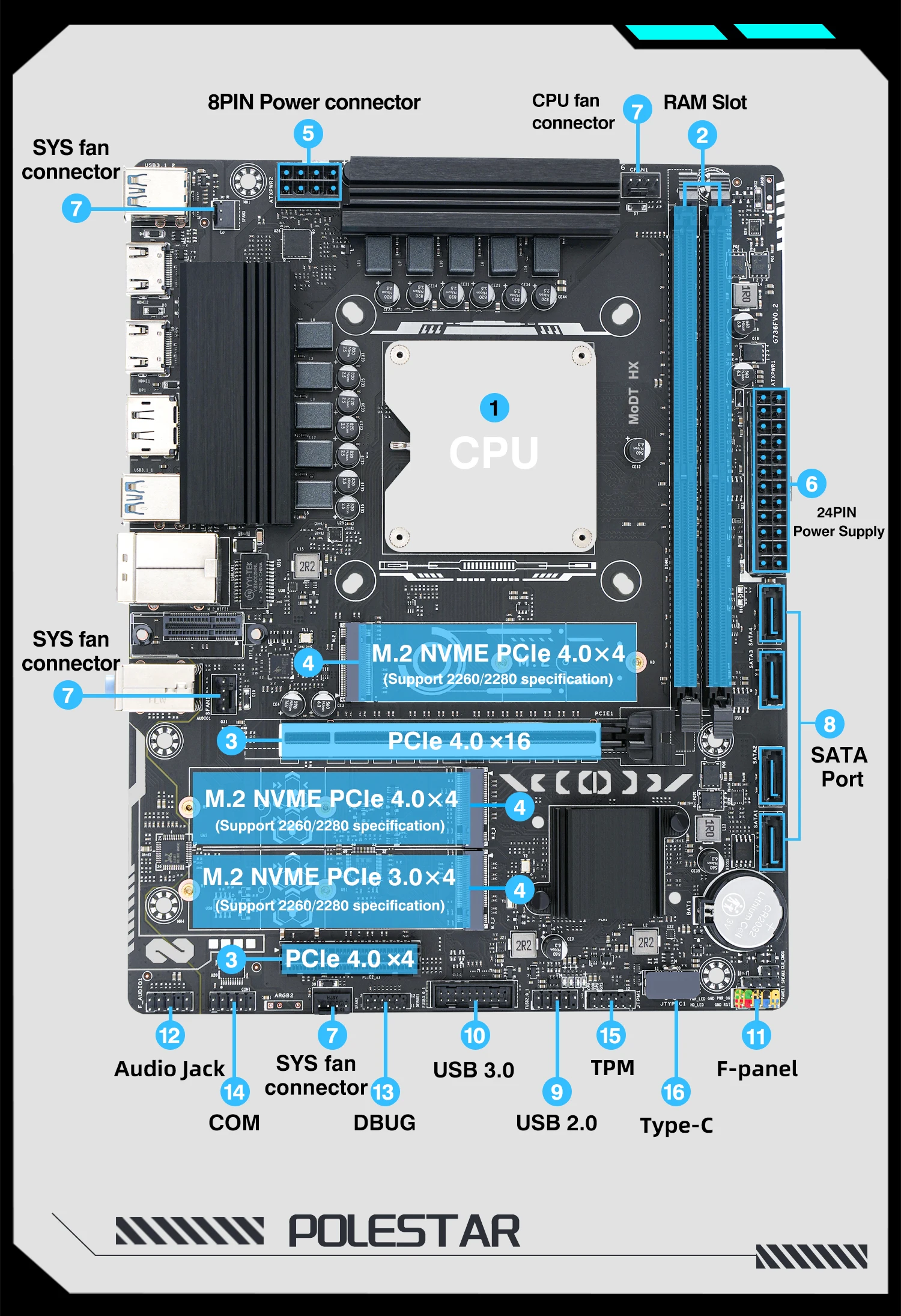

- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,SPI TPM Header,Addressable RGB Header,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,OthersConnectors & Header,Speaker Connector,USB 2.0 Connector,COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)

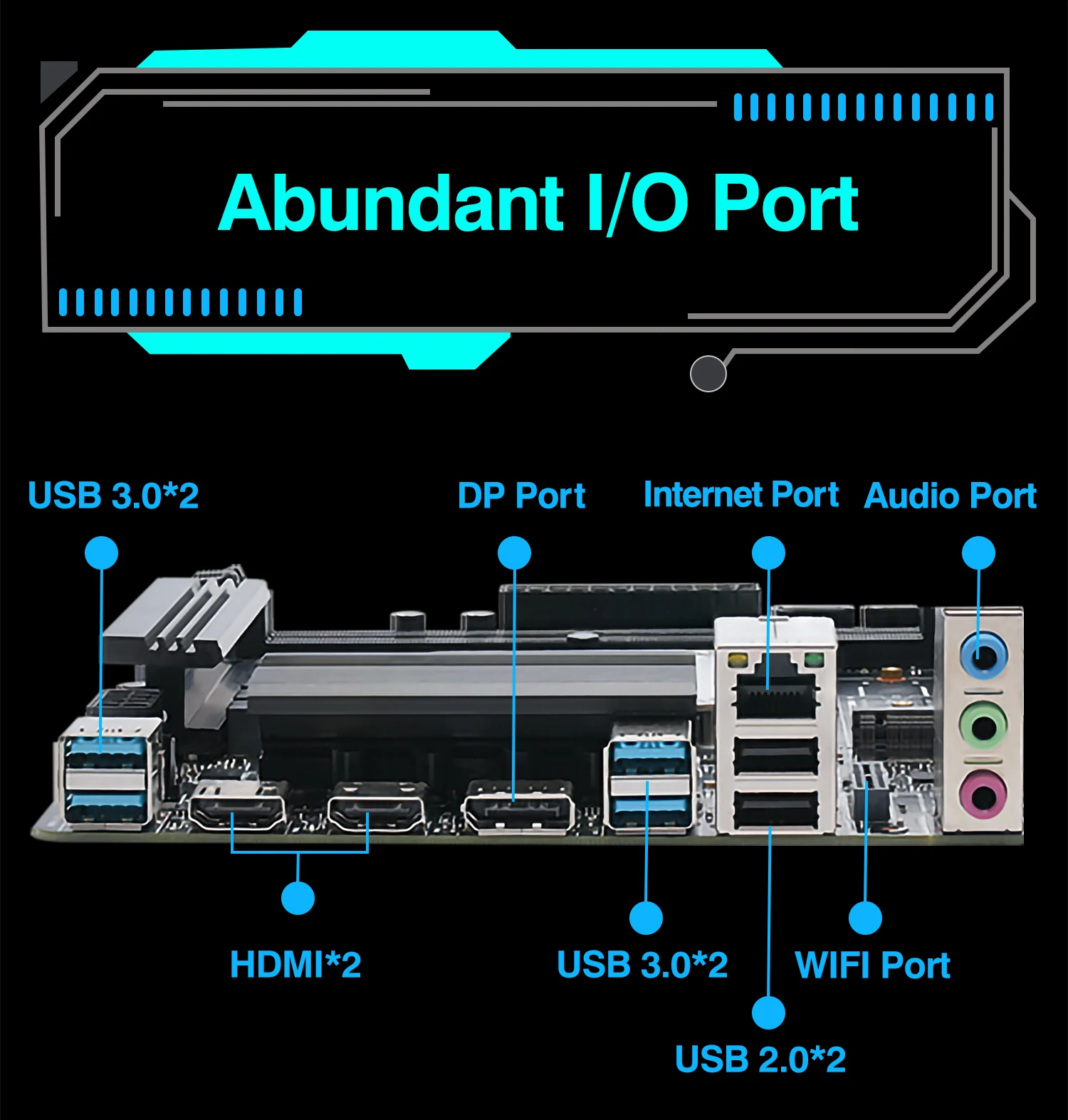

- Back I/O Ports: 1x RJ45,WIFI,3 x Audio Jacks,4x USB 3.2/3.1 Gen 1,USB Type-C,Function Button,Displayport,HDMI 2.0
- Support USB Type: USB 2.0,USB 3.0,USB 3.2 Gen1
- Max LAN Speed: 2500Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- Supports M.2 SSD: 2242,2280,2260
- Number of M.2: 3
- Number of SATA Ports: 4
- Storage Interface Type: SATA 3,M.2 (NVMe)
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 1
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI – E 4.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS,FCC
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- With CPU: Yes
- Chipset: Intel Others
- Application: Desktop
- Socket Type: Onboard CPU
- Brand Name: ERYING
- Special Features: None
- Origin: Mainland China
The processor of this motherboard is the ES version (i.e. Engineering Sample), and the model displayed on CPU-Z is" 0000"(NOT showing specific model number).
If the customer places an order,then means accept the ES version by default. Disputes and refunds caused by this reason will not be accepted, and the final resolution will belong to our store.
