Description
- Brand Name: XCY
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 128GB
- Model Number: X30B
- Hign-concerned Chemical: None
- Processor Model: Intel Celeron J1900, N2830, N2930
- Use: Household
- Origin: Mainland China
- Type: Mini Desktop
- Processor Main Frequency: 2.00GHz
- Graphics Card Type: Integrated Card
- Certification: CE, FCC, RoHS
- Processor Brand: Intel
- Type: MINI PC
- USB Ports: USB3.0 x1, USB2.0 x3
- Display Ports: HDMI x1, VGA x1
- Audio Ports: Earphone In x1, MIC x1
- LAN: Realtek 8111H Gigabit Ethernet
- WiFi: 300Mbps
- Power Adapter: DC12V-3A
- RAM: SODIMM DDR3L 1333/1600MHz
- Storage: mSATA SSD
- OS Support: Win10, Win8, Win7, Linux, Ubuntu
- Dimension: 134x134x40mm

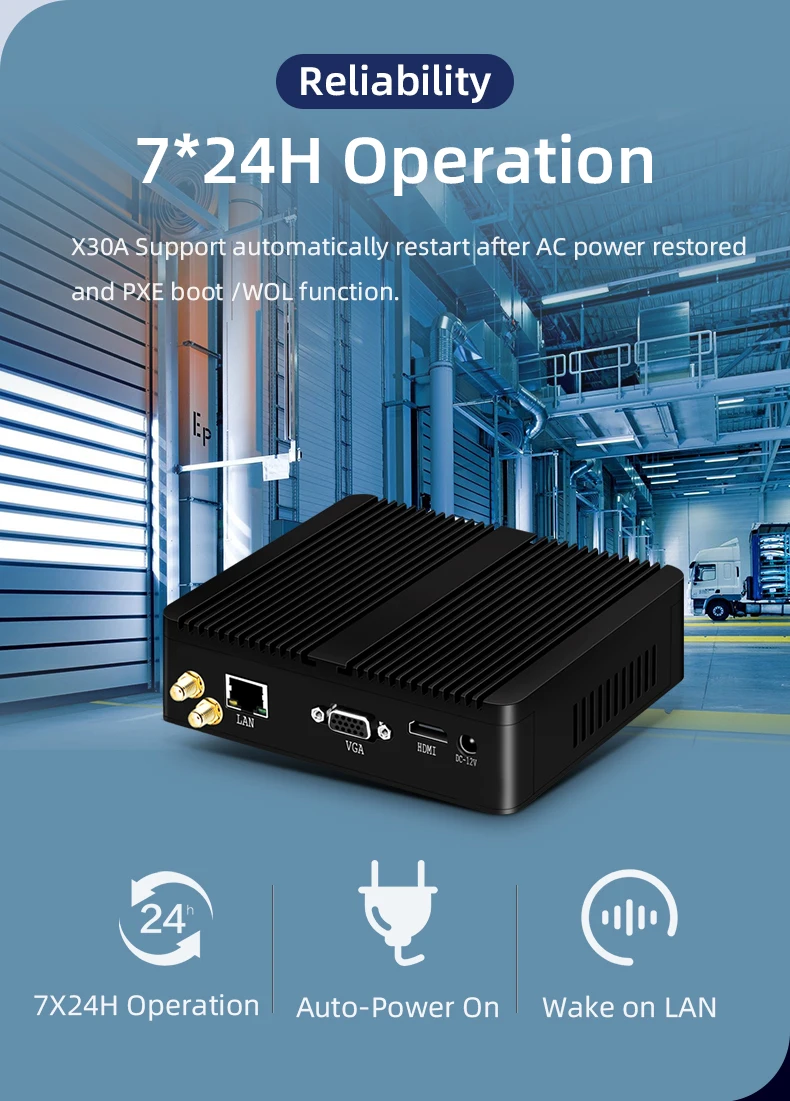

- Others: Support PXE, WOL, Auto Powen On After AC Restored

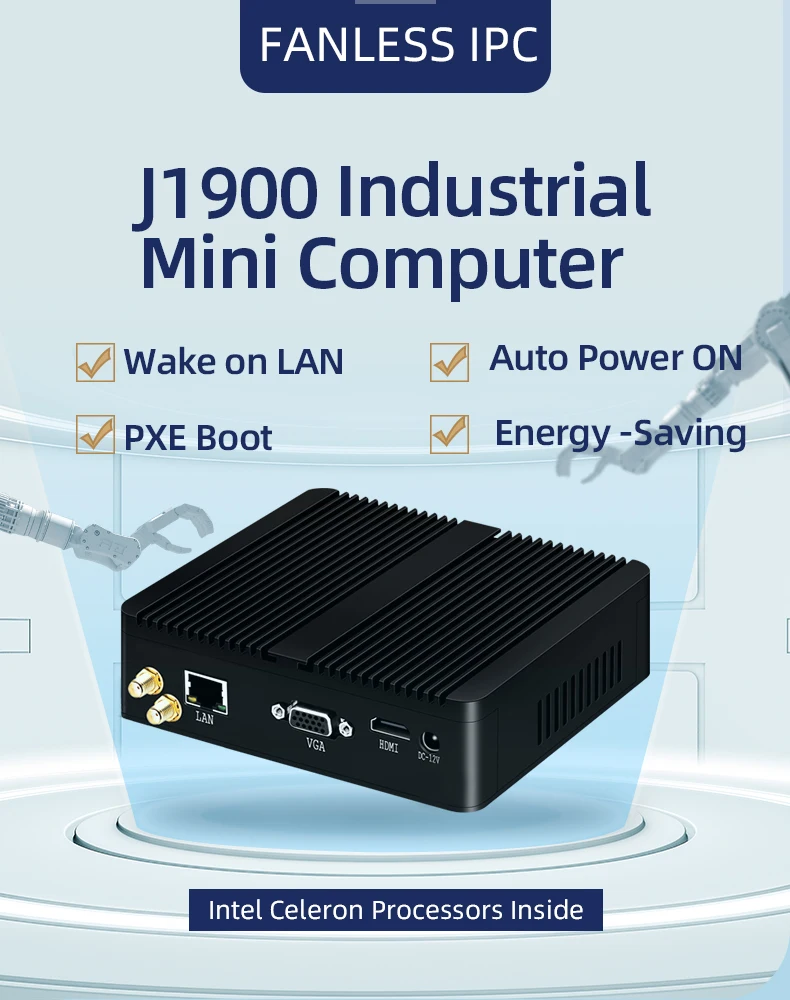

XCY-X30B Fanless Mini PC, Intel Celeron N2830/N2930/J1900 Processors, SODIMM-DDR3L RAM, Support mSATA and 2.5 inch SATA, Gigabit Ethernet, Support WiFi, 4x USB, HDMI+VGA Dual Display, Support Windows LInux, Industarial and Embedded IPC
Processors | Intel Celeron Processor N2830, 1M Cache, 2 cores 2 threads, 2.16GHz, up to 2.41GHz; Intel Celeron Processor N2930 , 2M Cache, 4 cores 4 threads, 1.83GHz, up to 2.16GHz Intel Celeron Processor J1900, 2M Cache, 4 cores 4 threads, 2.0GHz, up to 2.42 GHz; |

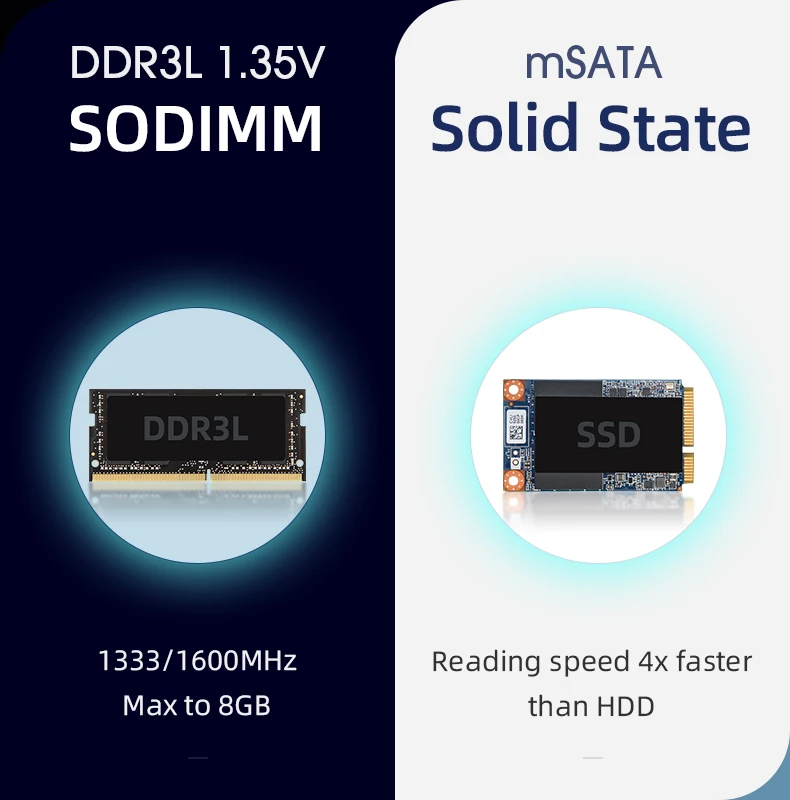

Memory Type | SODIMM, DDR3L 1333/1600MHz 1.35V Max support 1x 8GB |

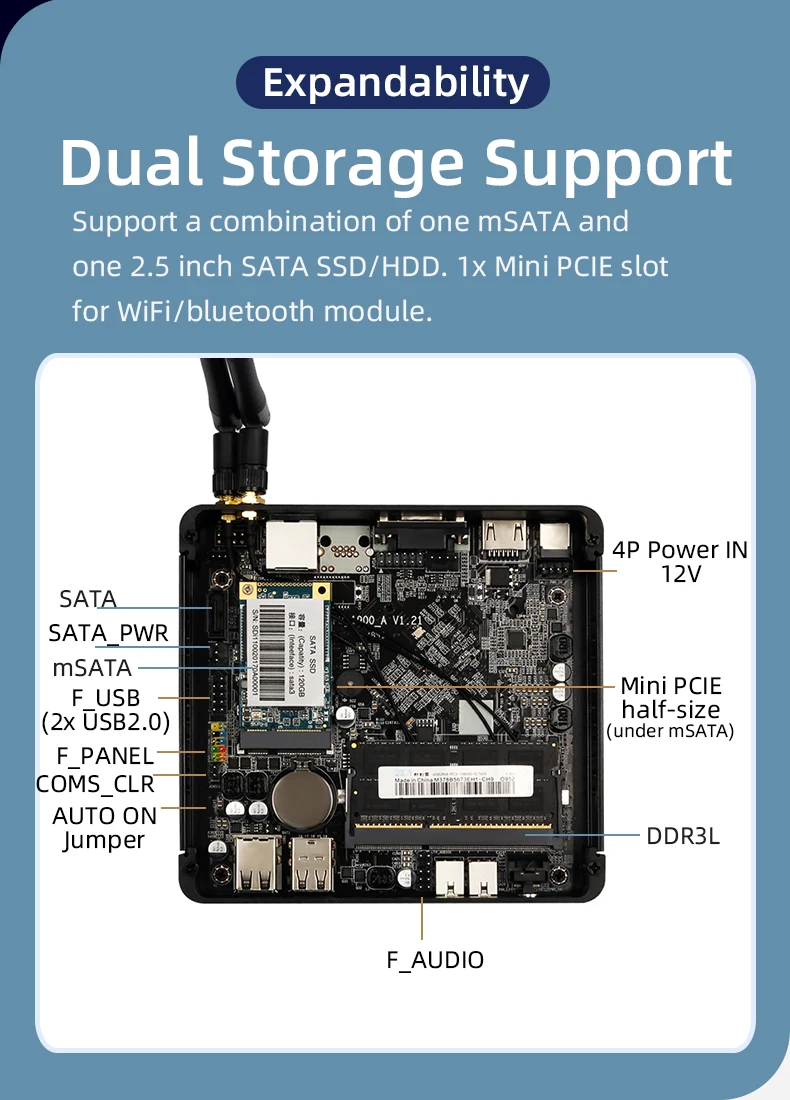

Storage | Support 1x mSATA SSD ( defaulted install this type hard drive ) Support 1x 2.5 inch SATA HDD/SSD |
Graphics | Intel HD Graphics |
Network Interfaces | Realtek 8111 GbE RJ45,Support Wake on LAN , PXE boot |
WiFi | 300Mbps |
OS Support | Windows 7/8/10, Windows 10 iOT, Windows 10 Embedded, Linux, Ubuntu |

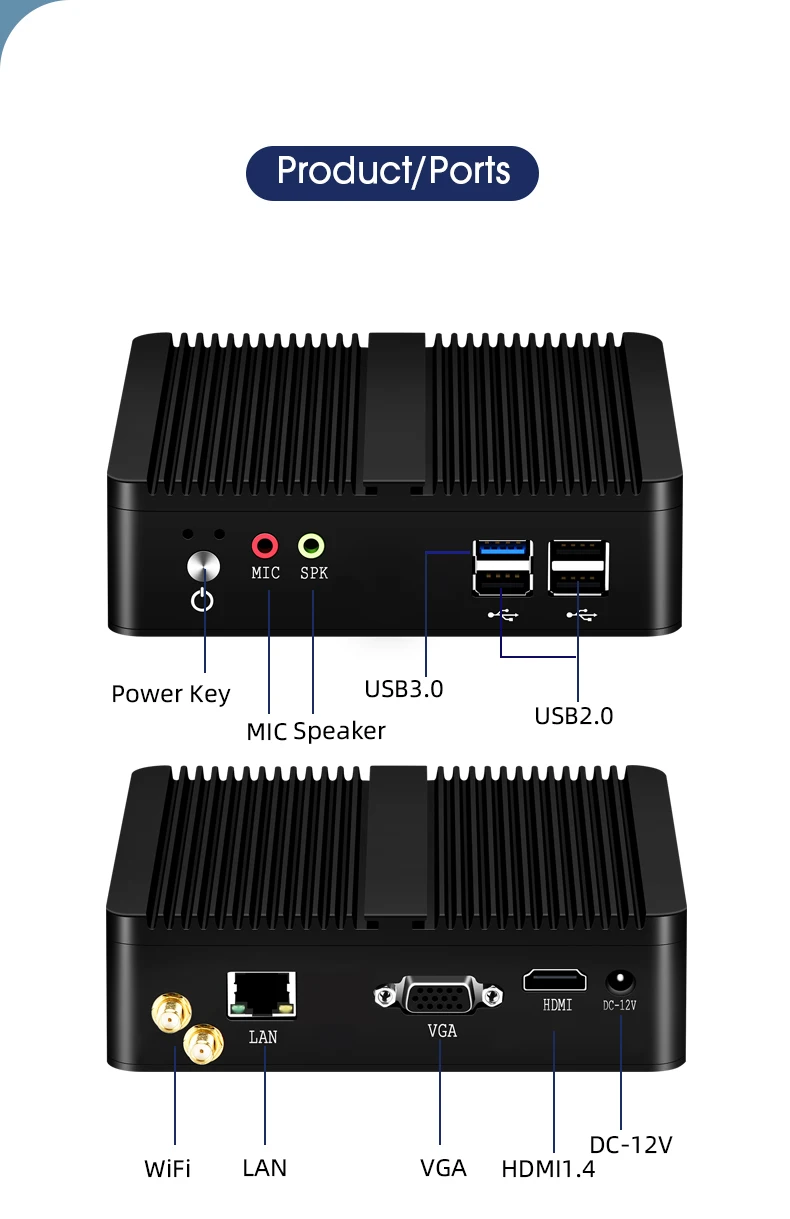

USB Ports | 1x USB3.0, 3x USB2.0 |

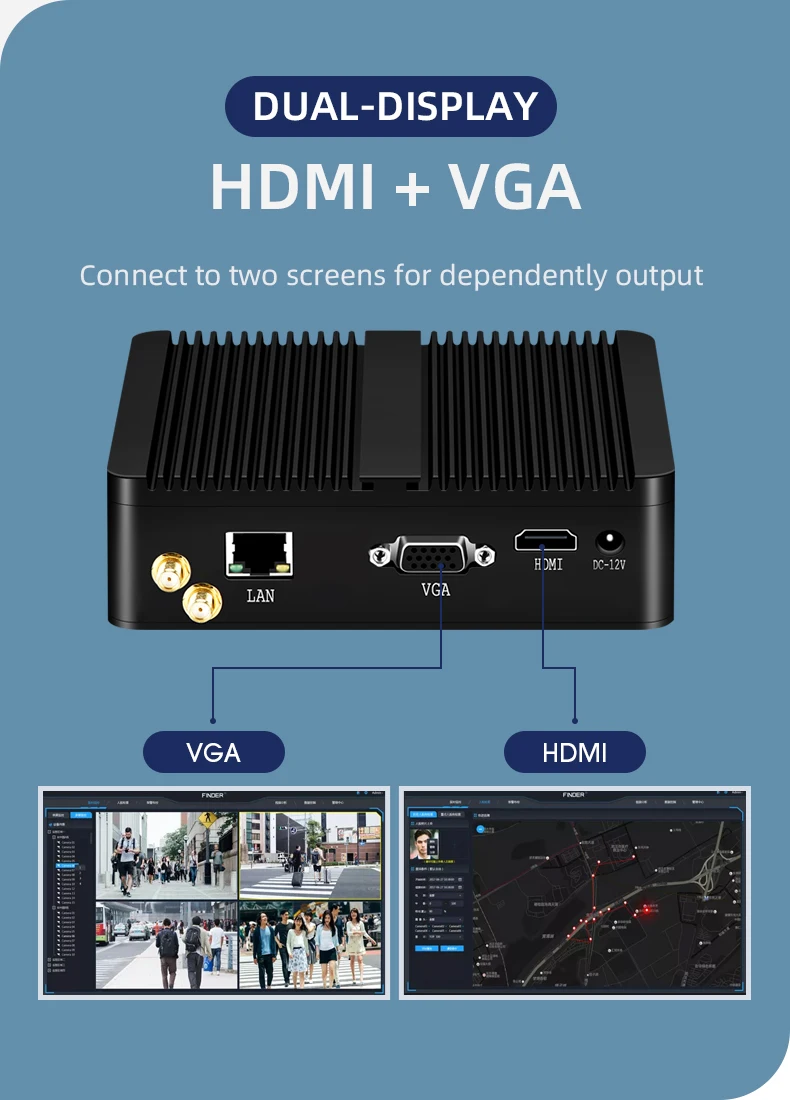

Display Port | 1x VGA, 1x HDMI Max resolution 1920*1080P |
Audio Ports | 1x SPK, 1x MIC, 3.5mm jack |
Construction | Fanless passive cooling |
Case Materials | Aluminum Case |
Dimension | 136x128x44mm |
Netweight | 0.85Kg |

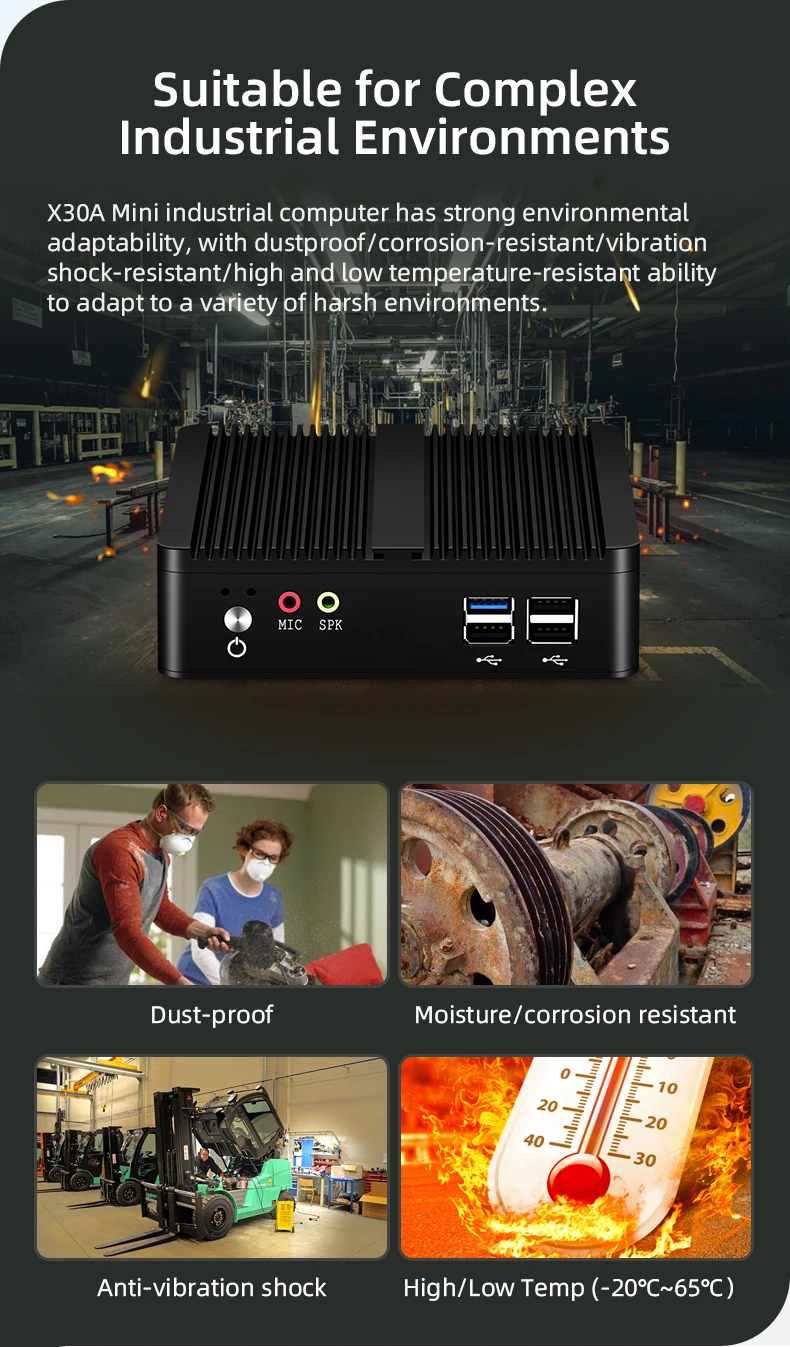

Operating Temperature | -20℃ to +60℃ |
RH | 5%~95% @30℃，Non-condensing |
Power Adapter | Input AC100-240V, Output DC12V-3A |
Package List | 1x Mini PC X30A 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cable 1x User manual |
|
